SFP Series

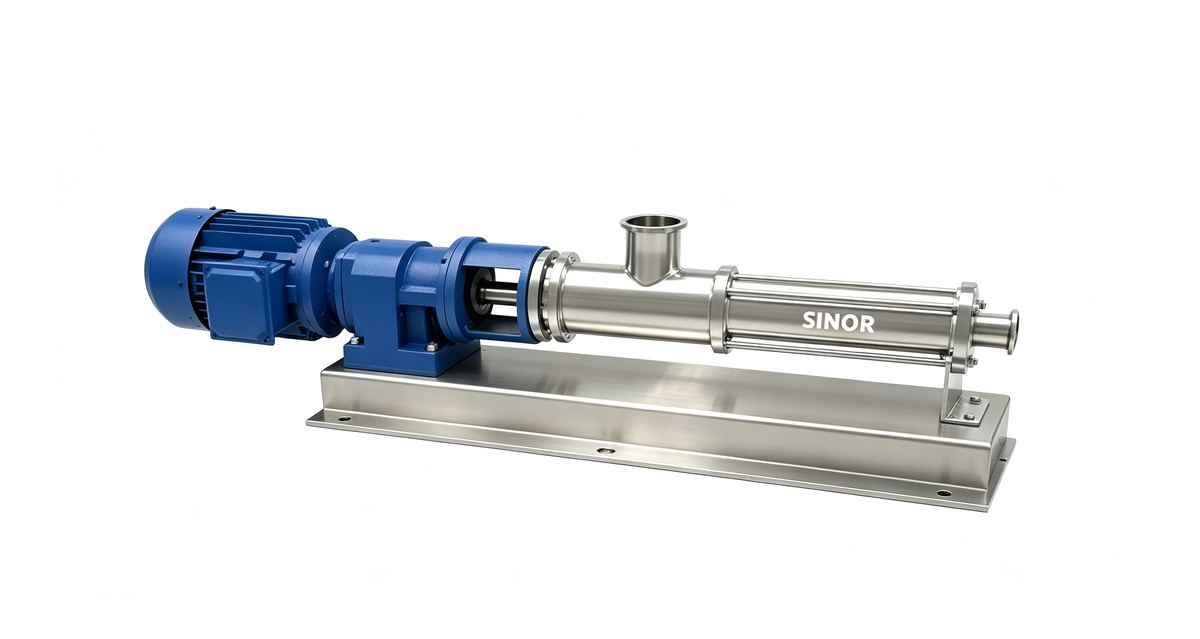

SFP Series — Sanitary Food Grade PCP
0.5–50 m³/h
Flow Range
0–24 bar
Pressure
800,000 cps
Viscosity Max
The SFP Series food-grade progressive cavity pump is designed specifically for the sanitary processing industries. Every component — from the polished stainless steel rotor to the food-grade elastomer stator — meets strict hygiene standards for dairy, beverage, pharmaceutical, and food processing applications. CIP cleanable with no dead corners.
Key Features
Why engineers choose this pump
-
01
Sanitary Design: All wetted parts polished to Ra ≤ 0.8 μm. No dead corners, no material accumulation. Fully CIP-cleanable.
-
02
Gentle Product Handling: Low-shear pumping preserves integrity of sensitive products — yogurt, fruit pulp, chocolate, sauces remain undamaged.
-
03
Wide Viscosity Range: Handles water-like liquids to thick pastes (800,000 cps) with smooth, pulse-free flow.
-
04
Quick Disassembly: Modular clamp-style connections allow rapid disassembly for cleaning — minimizing downtime between batches.
-
05
FDA-Compliant Materials: All elastomers and metals are food-grade certified for direct food contact.
Typical Applications
Industries and use cases
Dairy
Beverages
Food processing
Pharmaceutical
Cosmetics
Technical Specifications
| Flow Range | 0.5–50 m³/h |
| Pressure Range | 0–24 bar |
| Temperature Range | 0–80°C |
| Viscosity Max | 800,000 cps |
| Stator Materials | NBR / EPDM / FKM / HNBR (Food-grade) |
| Rotor Materials | SS304 / SS316L / Duplex SS / Chrome-plated steel |
| Seal Type | Sanitary mechanical seal / Packing seal |
| CIP Cleaning | Supported — no dead corners design |
| Surface Finish | Ra ≤ 0.8 μm (wetted parts) |
| Motor Options | SEW / Nord / Condrive (VFD-ready) |
Ready to Order?
Contact our team for pricing, lead time, and technical specifications.
