SVP Series

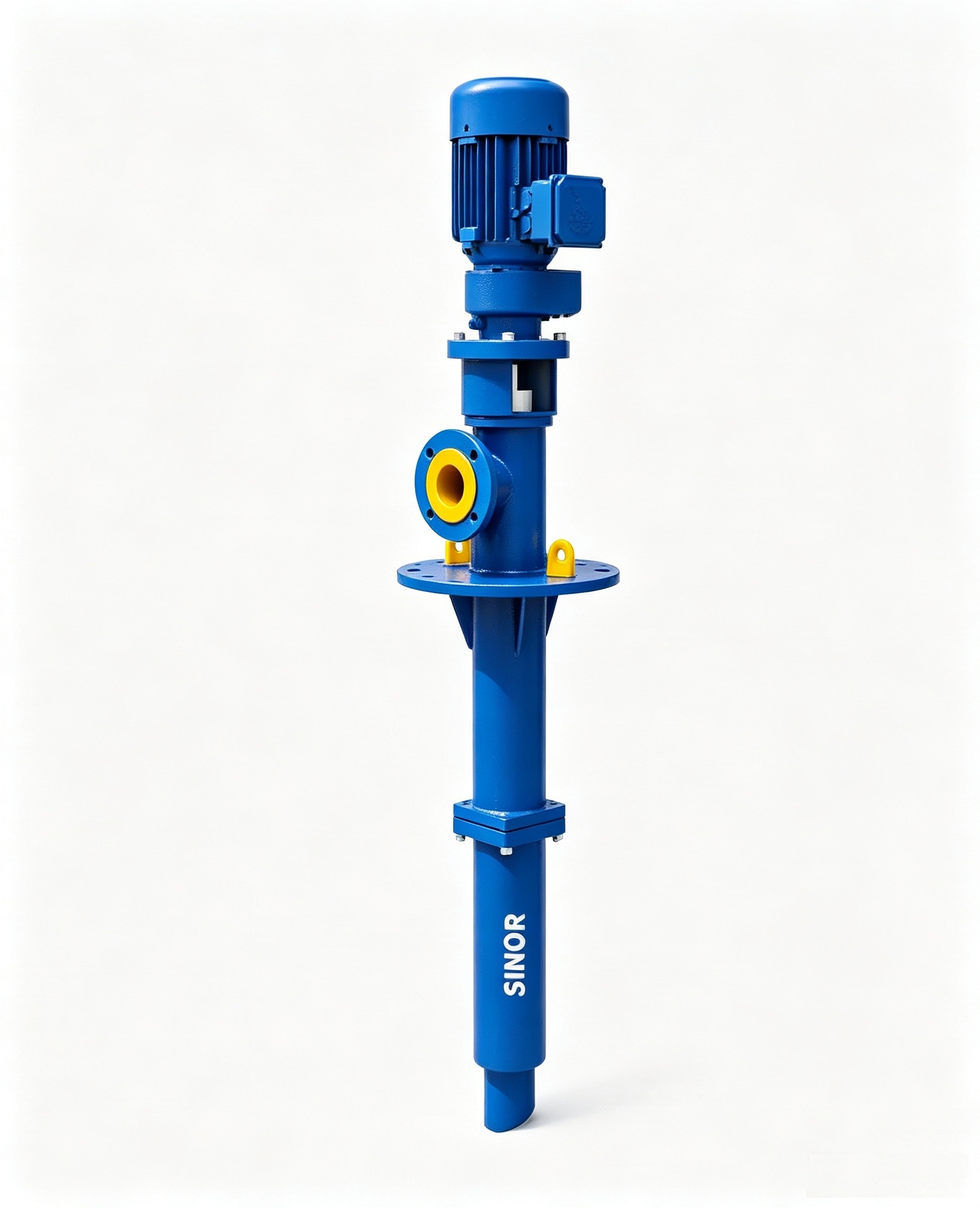

SVP Series — Vertical Progressive Cavity Pump
0.5–120 m³/h
Flow Range
0–12 bar
Pressure
800,000 cps
Viscosity Max
The SVP Series vertical progressive cavity pump is designed for applications where floor space is limited. The pump body extends vertically into the tank or pit, with the motor mounted above — significantly reducing the footprint compared to horizontal pump configurations.
Key Features
Why engineers choose this pump
-
01
Space-Saving Vertical Design: Pump body submerges into the tank — ideal for confined installations
-
02
Direct Tank Mounting: Flange-mounts directly on tank top — no separate baseplate required
-
03
Self-Priming: Excellent suction lift capability — handles tanks below pump level
-
04
High Viscosity Handling: Efficiently pumps viscous fluids up to 800,000 cps
-
05
Low Maintenance: Simple design with easy access to drive components above the tank
Typical Applications
Industries and use cases
Food processing
Chemical
Wastewater
Cosmetics
Fine chemicals
Technical Specifications
| Flow Range | 0.5–120 m³/h |
| Pressure Range | 0–12 bar |
| Temperature Range | 0–80°C |
| Viscosity Max | 800,000 cps |
| Immersion Depth | Up to 3 meters (customizable) |
| Stator Materials | NBR / EPDM / FKM / HNBR |
| Rotor Materials | SS304 / SS316L / Duplex SS / Chrome-plated alloy steel |
| Seal Type | Mechanical seal / Packing seal |
| Mounting | Flange-mounted on tank top |
| Motor Options | SEW / Nord / Condrive |
Ready to Order?
Contact our team for pricing, lead time, and technical specifications.
