STP Series

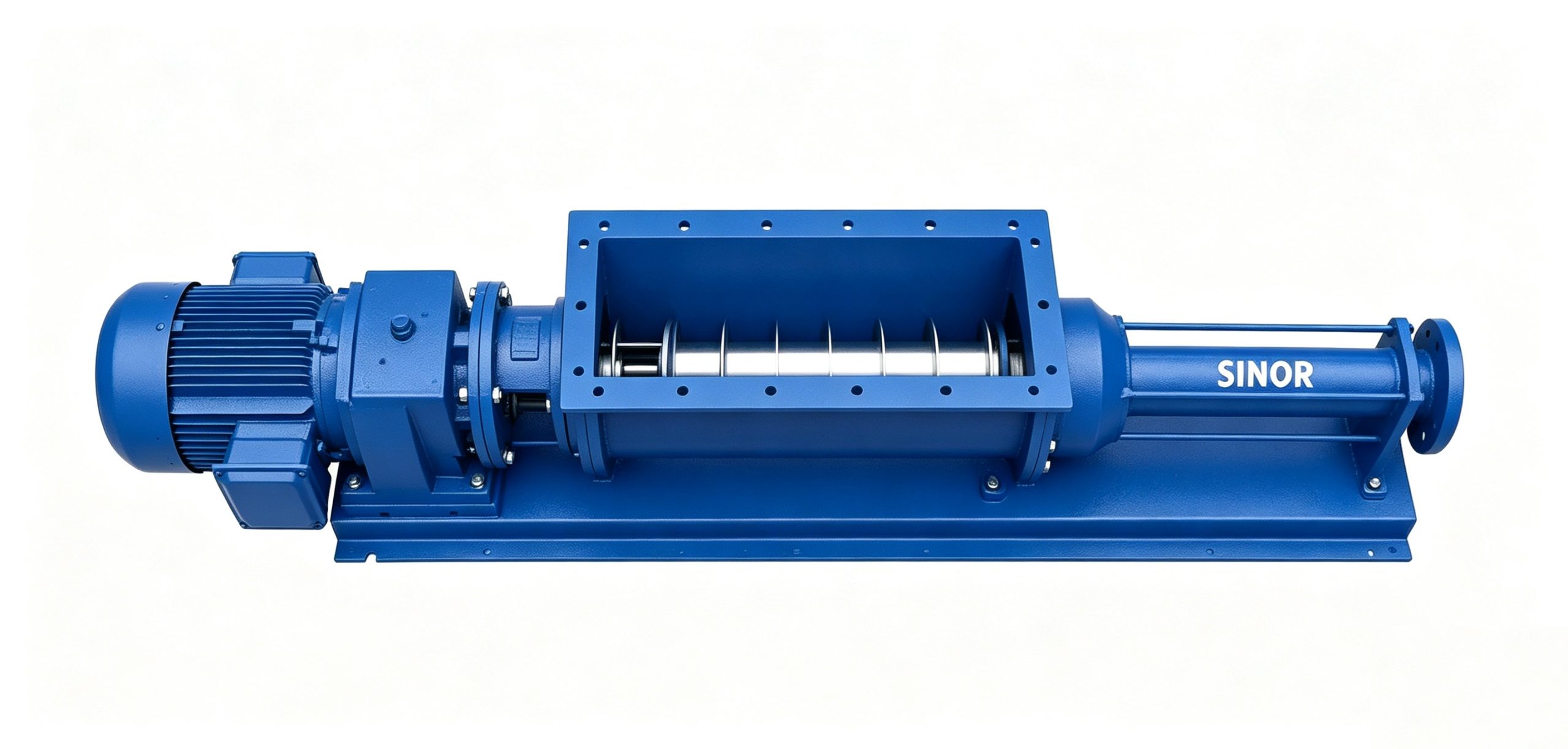

STP Series — Rectangular Hopper PCP
0.02–120 m³/h
Flow Range
0–24 bar
Pressure
700,000 cps
Viscosity Max
The STP Series features a rectangular large-opening hopper design, ensuring smooth feeding of high-viscosity, fibrous, and bulky materials without bridging or blocking. The wide inlet provides unrestricted flow into the pumping elements, making it ideal for difficult-to-handle media.
Key Features
Why engineers choose this pump
-
01
Rectangular Hopper: Large opening prevents bridging — handles sticky, fibrous, and bulky materials
-
02
Wide Flow Range: From 0.02 m³/h for small dosing up to 120 m³/h for large transfer
-
03
Stable Pressure: Consistent output pressure up to 24 bar
-
04
Flexible Mounting: Compact design compatible with various installation configurations
-
05
Versatile Material Handling: Suitable for pastes, slurries, fibrous suspensions, and granular media
Typical Applications
Industries and use cases
Food
Wastewater
Chemical
Paper & pulp
Cosmetics & personal care
Technical Specifications
| Flow Range | 0.02–120 m³/h |
| Pressure Range | 0–24 bar |
| Temperature Range | 0–80°C |
| Viscosity Max | 700,000 cps |
| Inlet Type | Rectangular large opening |
| Hopper Design | Sloped walls for material flow |
| Stator Materials | NBR / EPDM / FKM / HNBR |
| Rotor Materials | SS304 / SS316L / Duplex SS / Chrome-plated alloy steel |
| Seal Type | Mechanical seal / Packing seal |
| Motor Options | SEW / Nord / Condrive |
Ready to Order?
Contact our team for pricing, lead time, and technical specifications.
