SSP Series

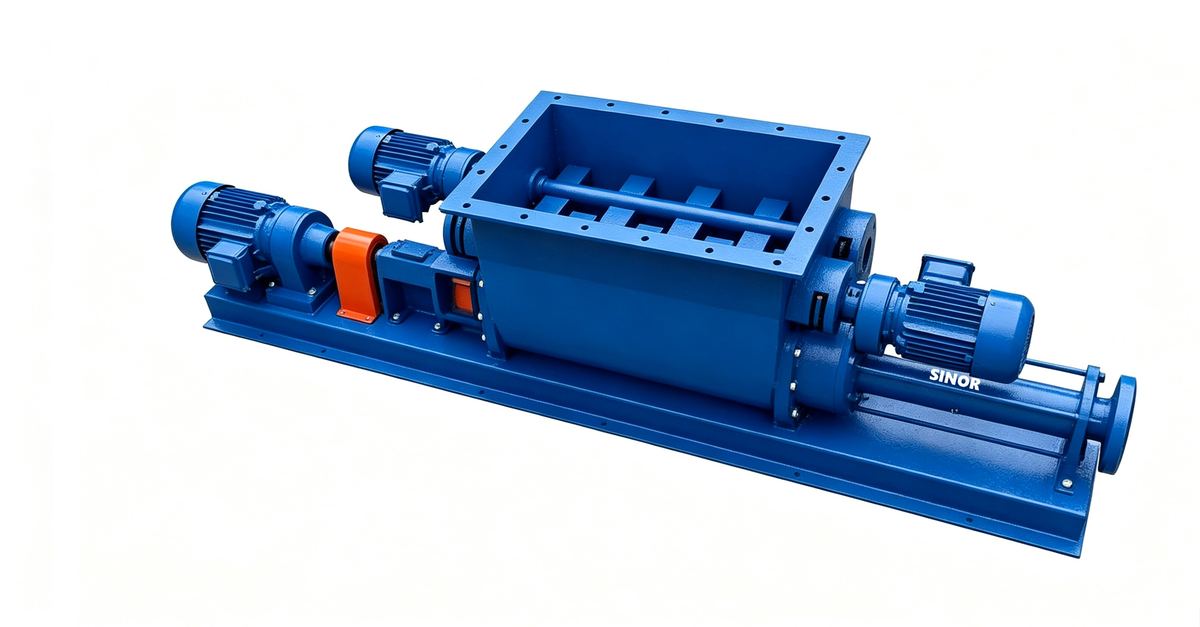

SSP Series — Bridge Breaking Hopper PCP
0.5–60 m³/h
Flow Range
0–48 bar
Pressure
800,000 cps
Viscosity Max
The SSP Series features a rectangular hopper with an integrated bridge-breaking agitator, designed specifically for handling high-viscosity, sticky, and fibrous materials that tend to bridge or clog in standard hopper-fed pumps. The agitator ensures continuous material flow into the pumping elements.
Key Features
Why engineers choose this pump
-
01
Bridge Breaking Agitator: Rotating paddle agitator prevents material bridging — ensures continuous feeding
-
02
Rectangular Hopper: Large opening for easy filling of viscous, pasty, and fibrous materials
-
03
High Pressure: Up to 48 bar for long-distance and high-lift applications
-
04
Sticky Material Handling: Ideal for sludge, food paste, coatings, and chemical slurries
-
05
Separate Agitator Drive: Independent gear motor allows adjustable agitation speed
Typical Applications
Industries and use cases
Wastewater
Food
Chemical
Pulp & paper
Waste management
Technical Specifications
| Flow Range | 0.5–60 m³/h |
| Pressure Range | 0–48 bar |
| Temperature Range | 0–80°C |
| Viscosity Max | 800,000 cps |
| Hopper Type | Rectangular large opening with agitator |
| Stator Materials | NBR / EPDM / FKM / HNBR |
| Rotor Materials | SS304 / SS316L / Duplex SS / Chrome-plated alloy steel |
| Seal Type | Mechanical seal / Packing seal |
| Agitator Drive | Independent gear motor |
| Motor Options | SEW / Nord / Condrive |
